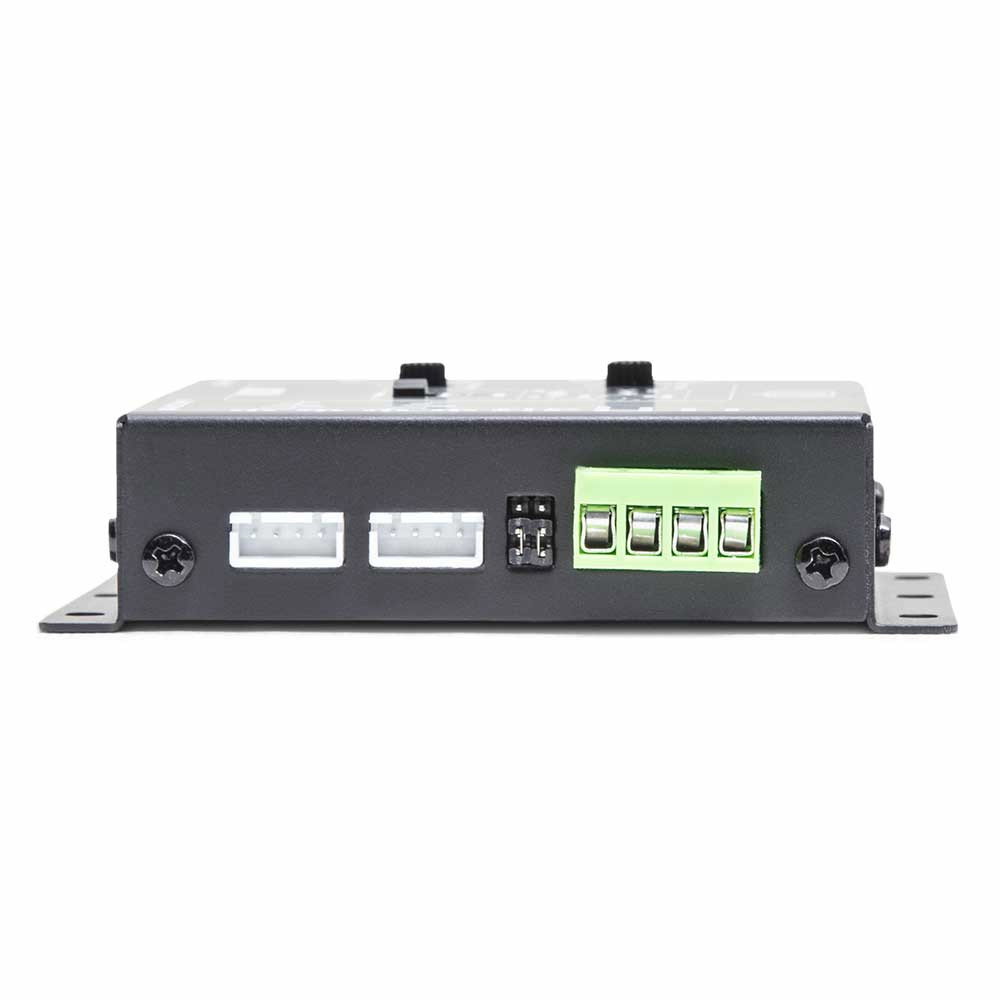

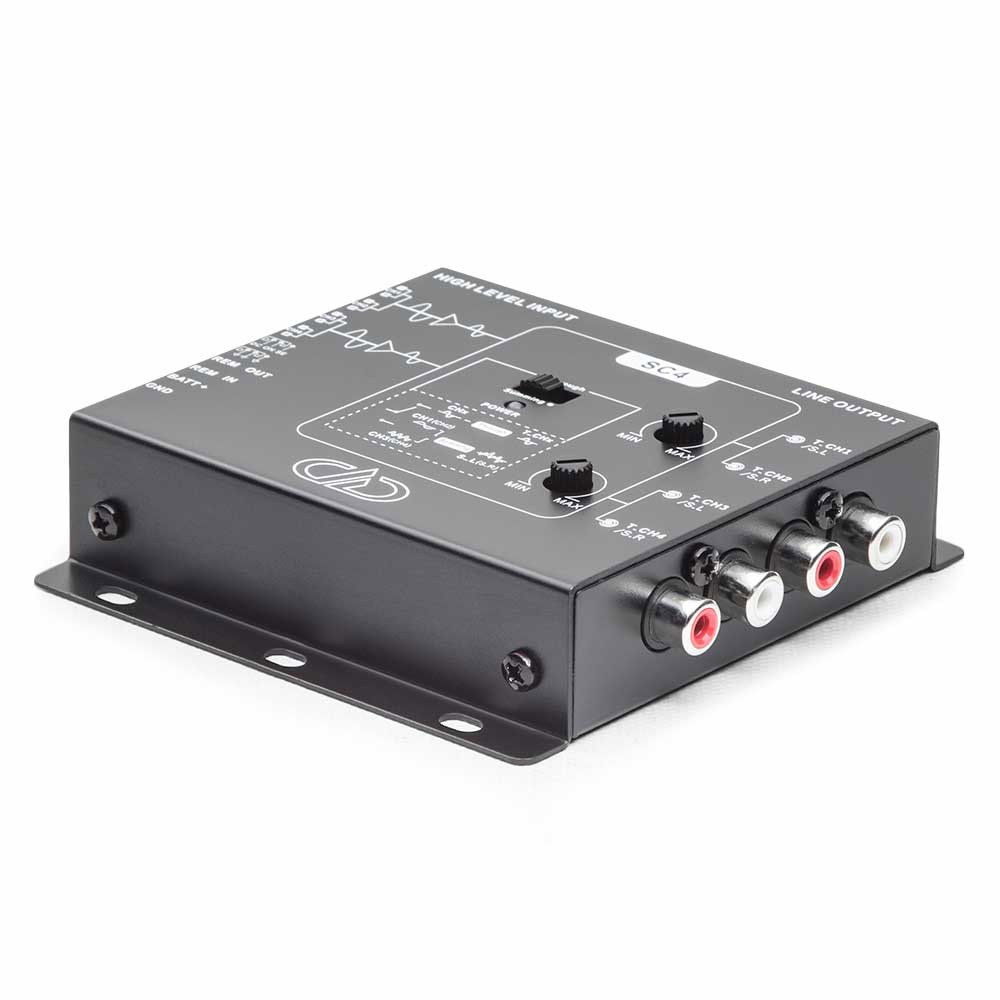

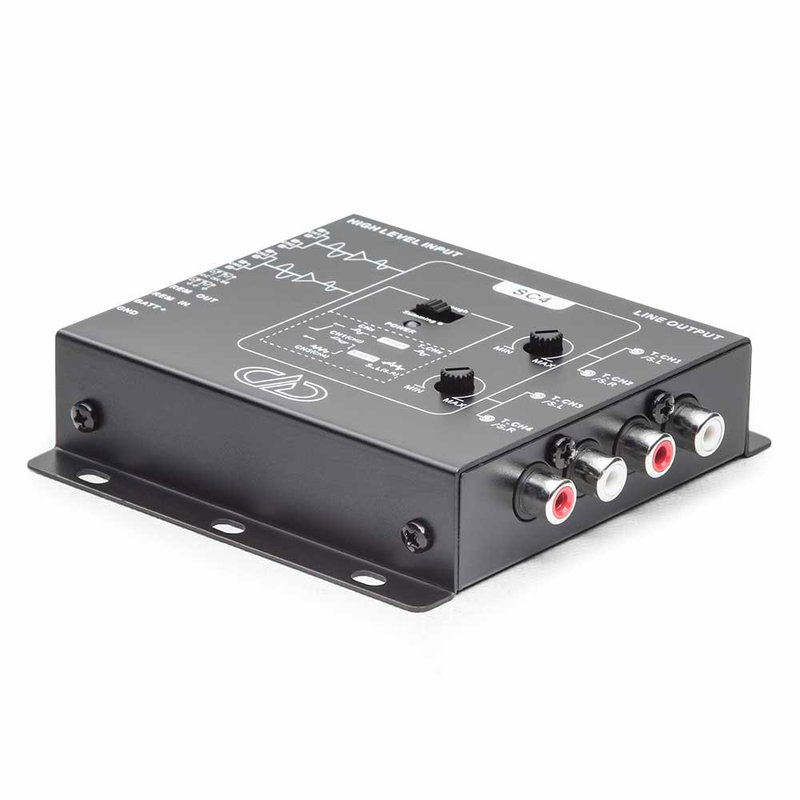

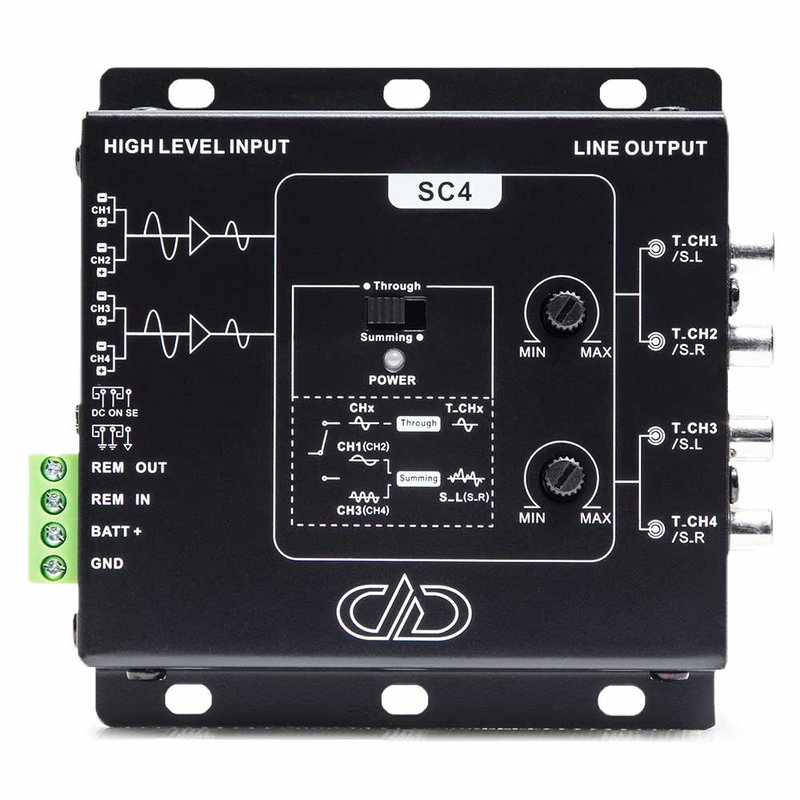

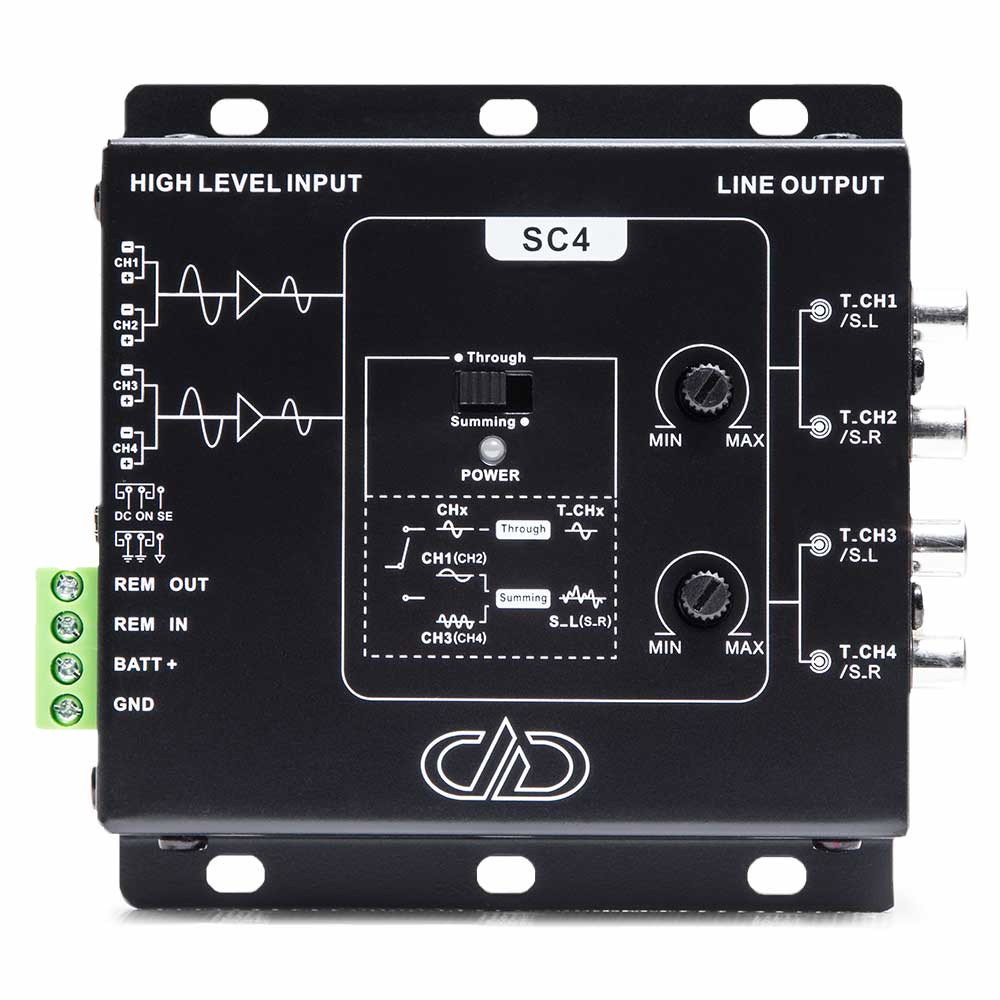

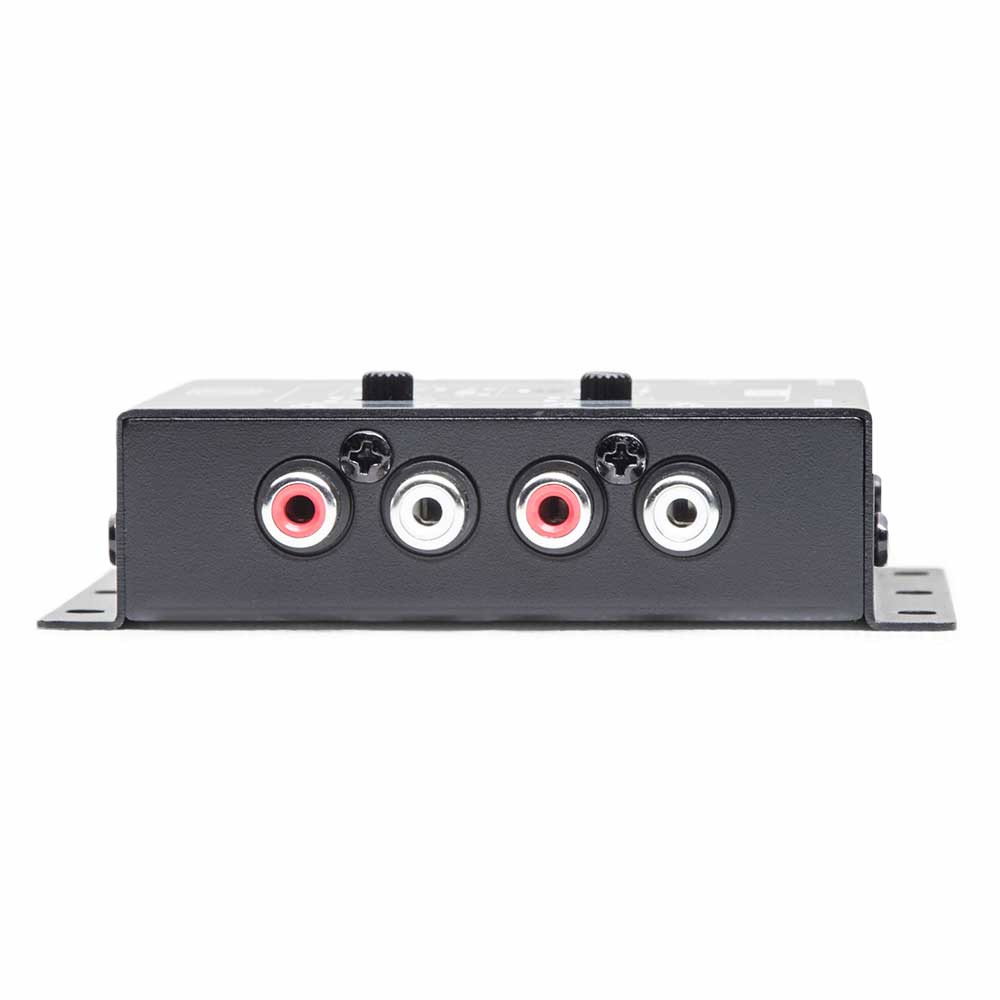

DD Audio SC4a 4-channel signal converter with 12v Remote

The SC4 is a premium quality 4 channel line output signal converter. Installers will appreciate the metal chassis and easy access to features such as input channel summing, turn on selection, and grounding selection. To allow for greater OEM interface compatibility, the SC4’s input impedance allows it to integrate with most load detect systems without the need for external resistors.

Features
Input Summing
Differential-Balanced Inputs
Independent Variable Gains
Selectable Ground Isolation
Signal Sense Turn on (RCA and High Level)
Double Power Supply
Detachable Power and Speaker Input Terminals
FR4 PCB
Aluminum Chassis
OEM Load Detect Compatible

Operating Voltage: 10 - 16
Input Channel(s): 4 x Speaker-Level
Output Channel(s): 4 x Low-Level RCA
Max Current Draw (Amps): 110mA
High-Level Input Voltage Sensitivity: 2 - 20
RCA Output Voltage: 10
RCA Input Impedance: 180
RCA Input S/N: 95dB
Frequency Response (Hz): 10 ~ 50k
Remote Out Current: 12V 500mA
Dimensions (Inches): 3.8 x 4 x 1
Dimensions (MM): 98 x 104 x 25
Shipping Weight (Lbs): 1
