EVO X Line ger den senaste tekniken i en kompakt design med komponenter av högsta kvalitet. Från en banbrytande teknik tog SounDigital till billjudförstärkare något som inte hade utforskats ännu. Den termiska kopplingen genom RTGP-system. Det exklusiva RTGP-systemet (Thermal Recovery for power generation) garanterar SoundDigital-produkter både högre termisk effektivitet och robusthet med högre stabilitet.

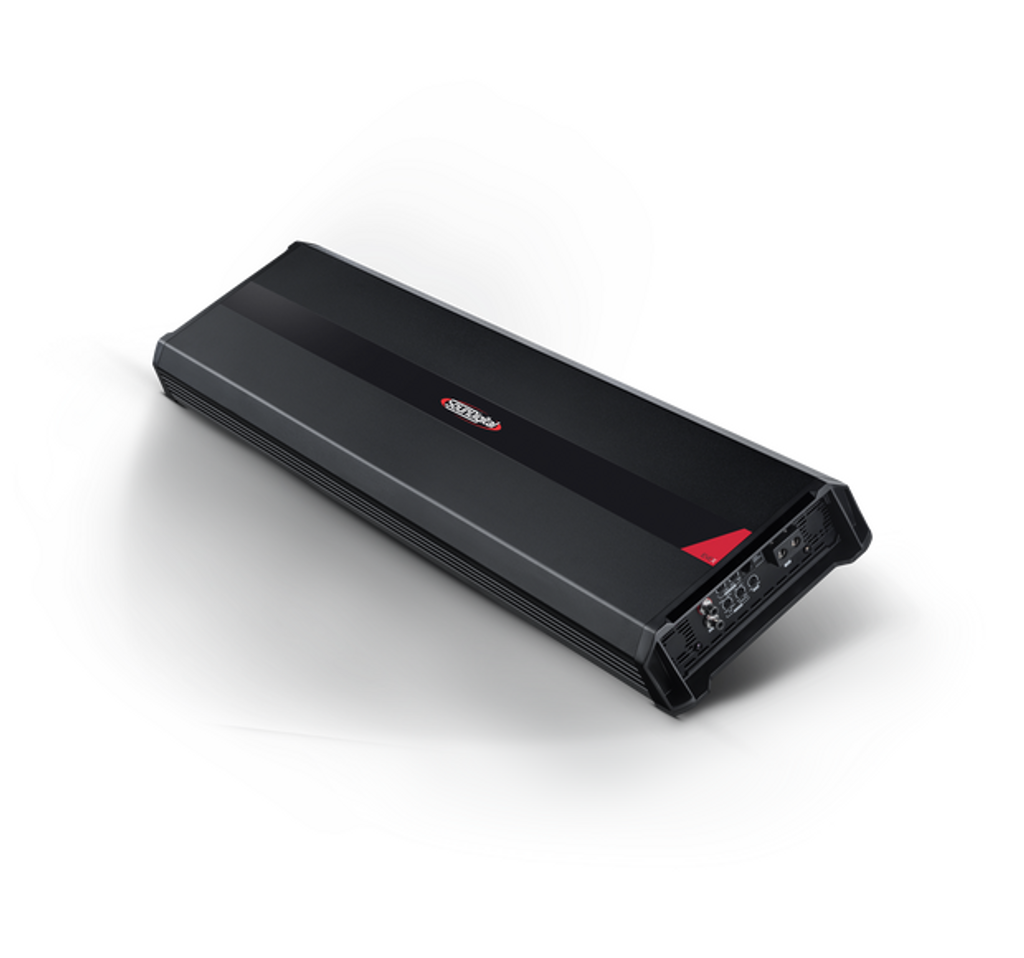

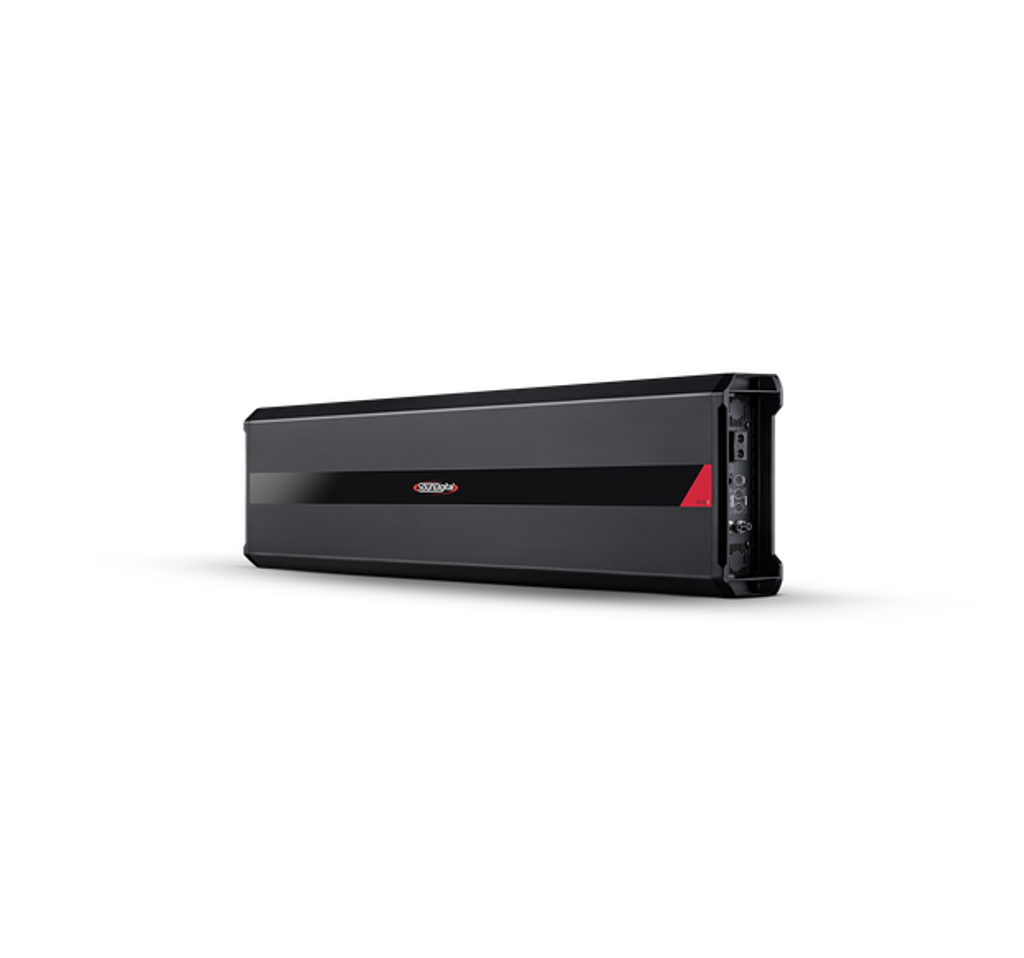

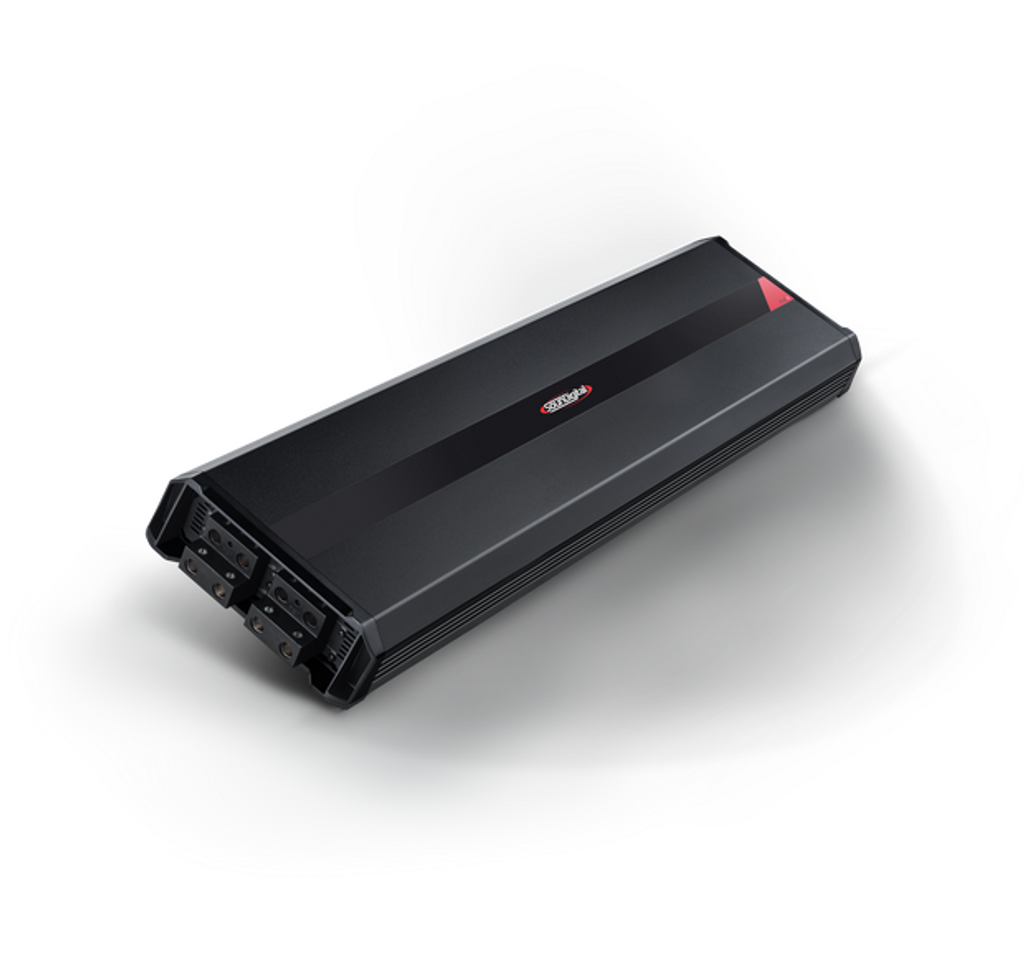

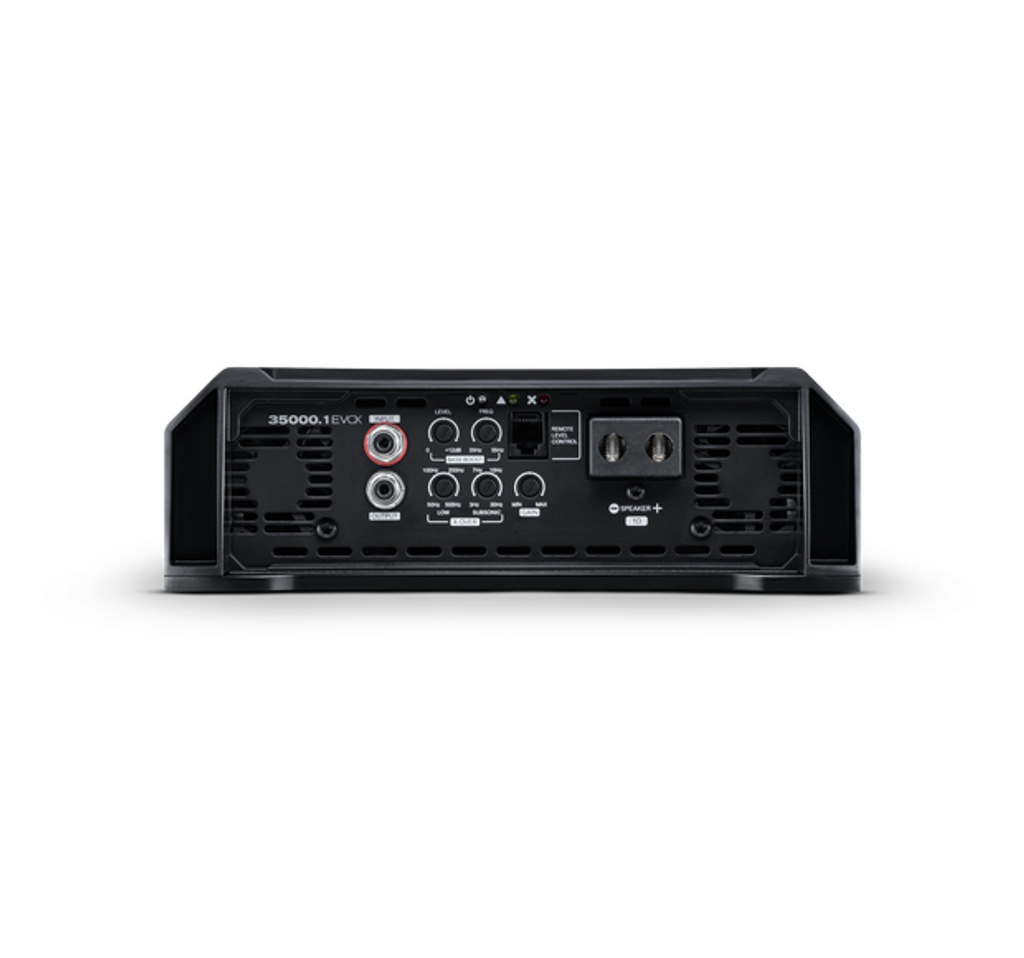

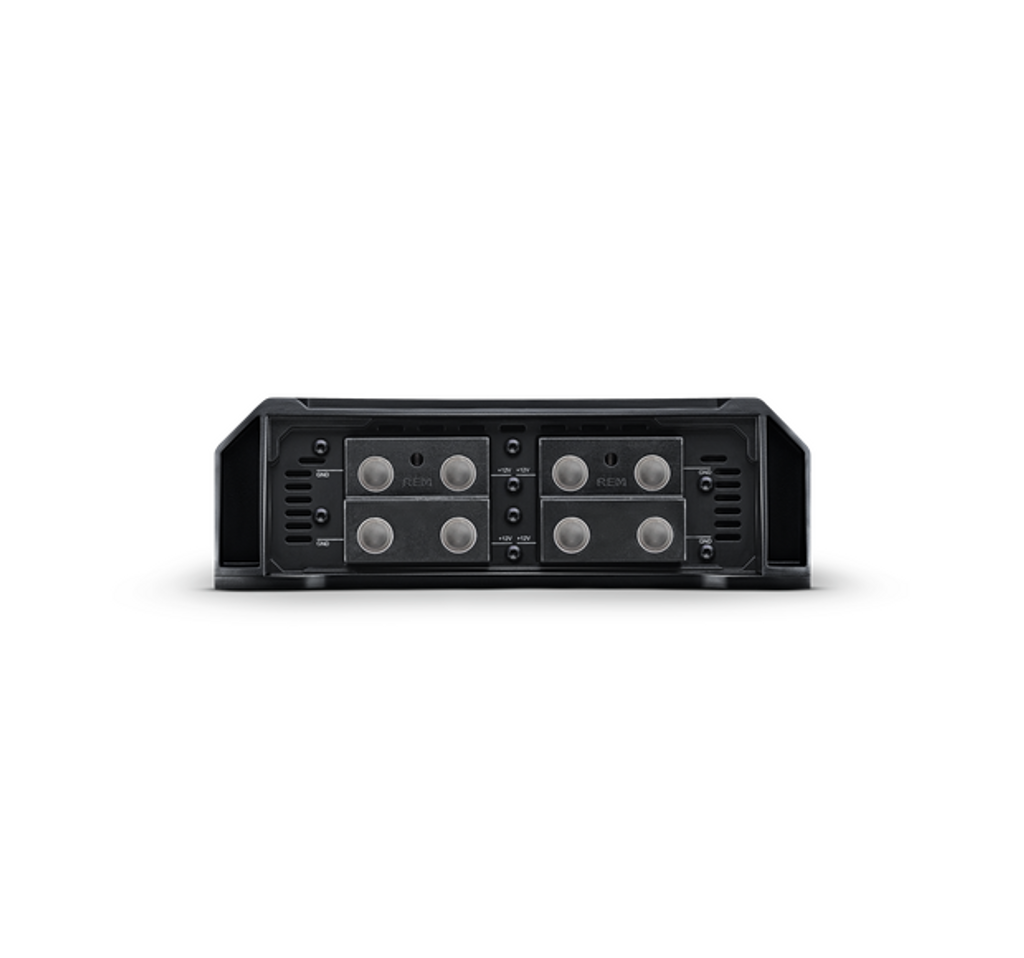

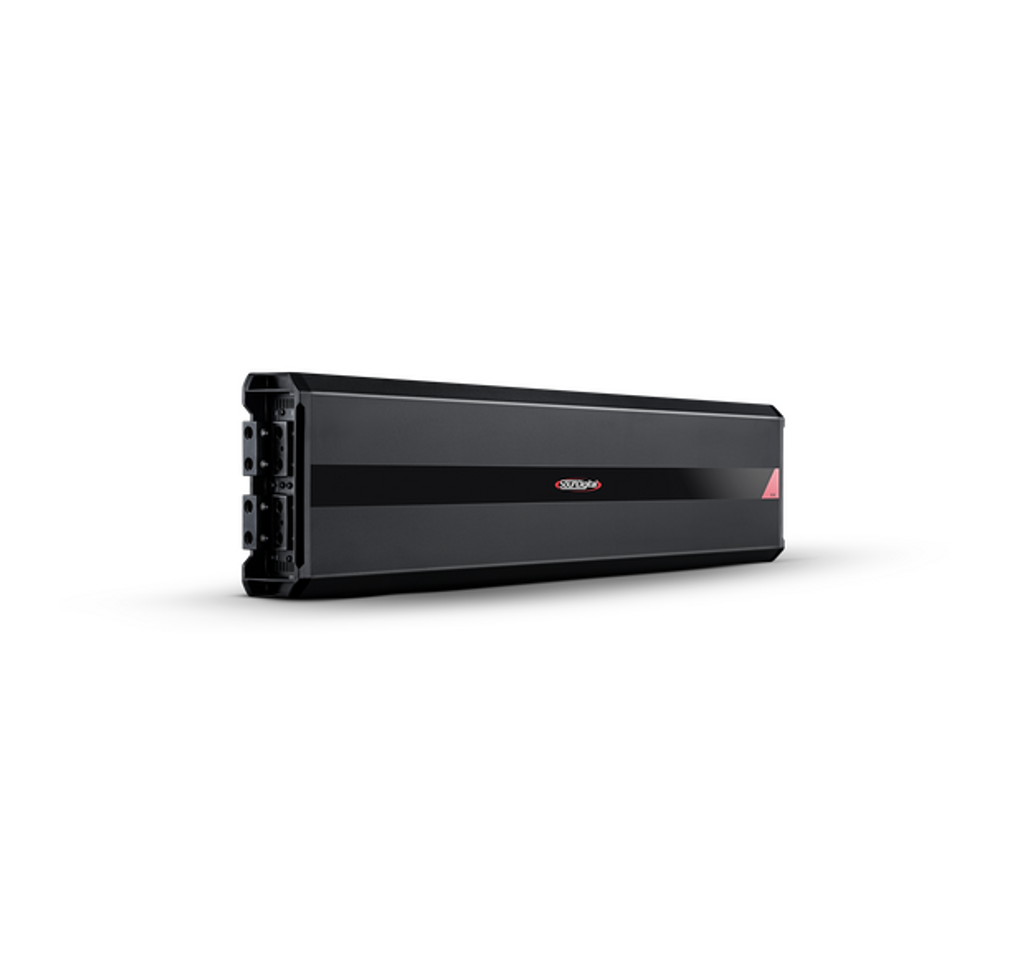

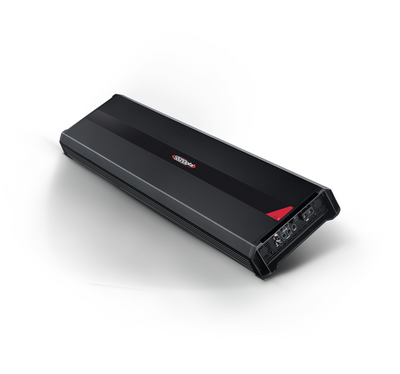

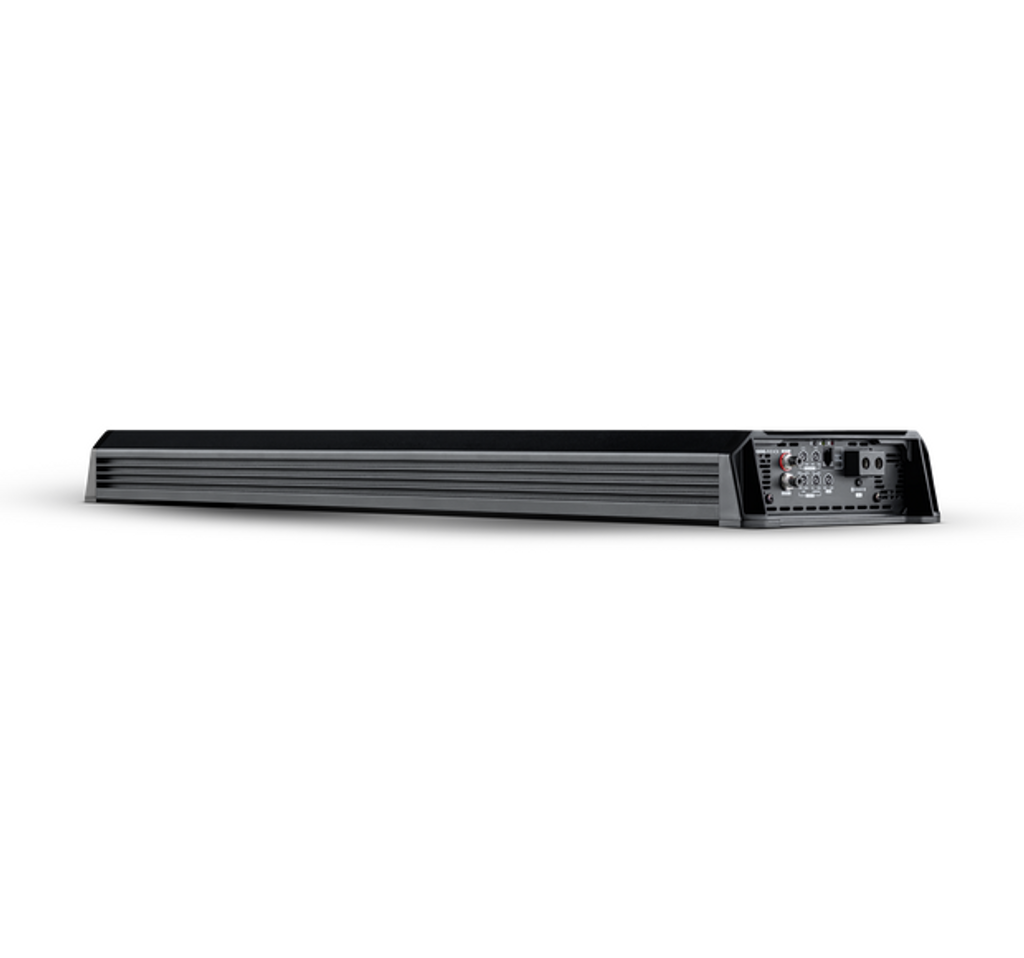

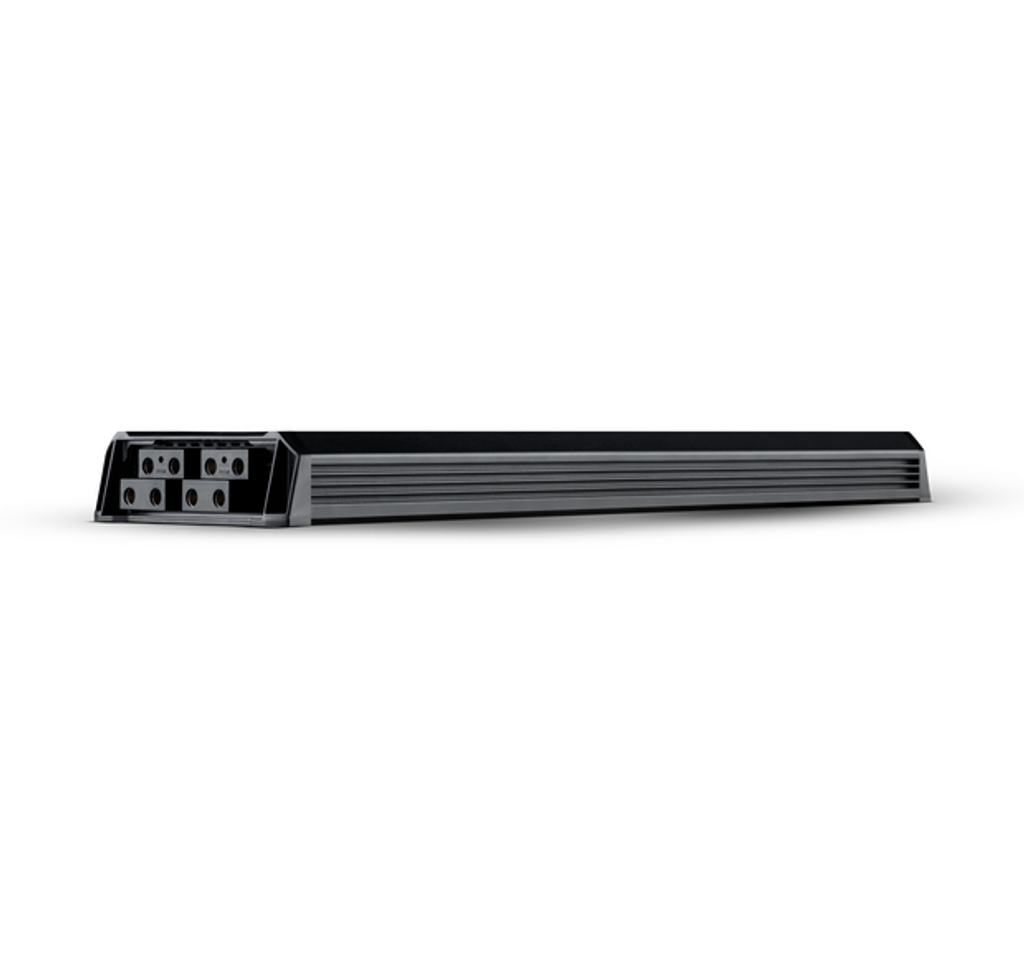

35000.1 EVOX – 1Ω
Power @ 12.6V @ 4Ω: 1 X 15246 WRMS
Power @ 12.6V @ 2Ω: 1 X 23100 WRMS
Power @ 12.6V @ 1Ω: 1 X 35000 WRMS
Power @ 14.4V @ 4Ω: 1 X 16999 WRMS
Power @ 14.4V @ 2Ω: 1 X 25757 WRMS
Power @ 14.4V @ 1Ω: 1 X 39025 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 1715 A
Current Draw (Max): 3429 A
Recommended Fuse (Music): 3500 A
Total Efficiency: 81%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 500 Hz
SNR: 76dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.3%
Product Dimensions: 33.9 x 8.8 x 2.8 in
Product Dimensions: 86.3 x 22.5 x 7.1 cm
