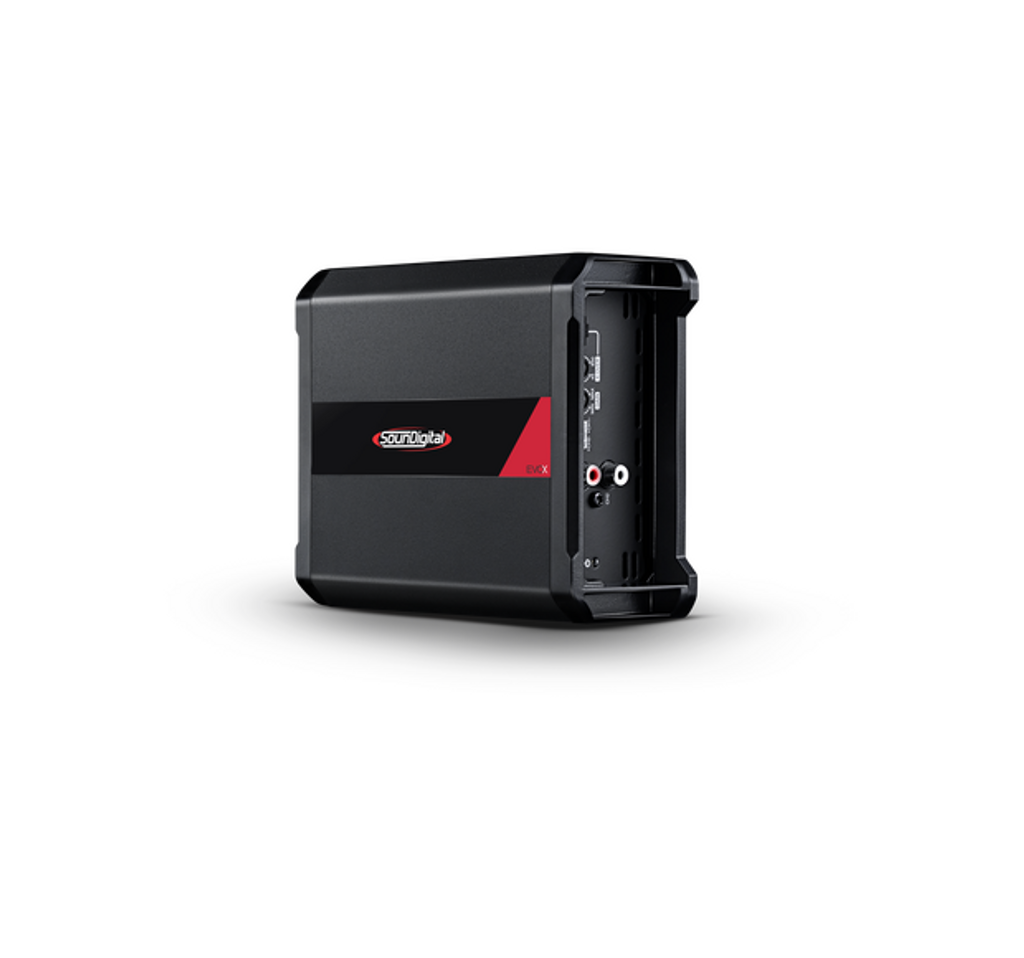

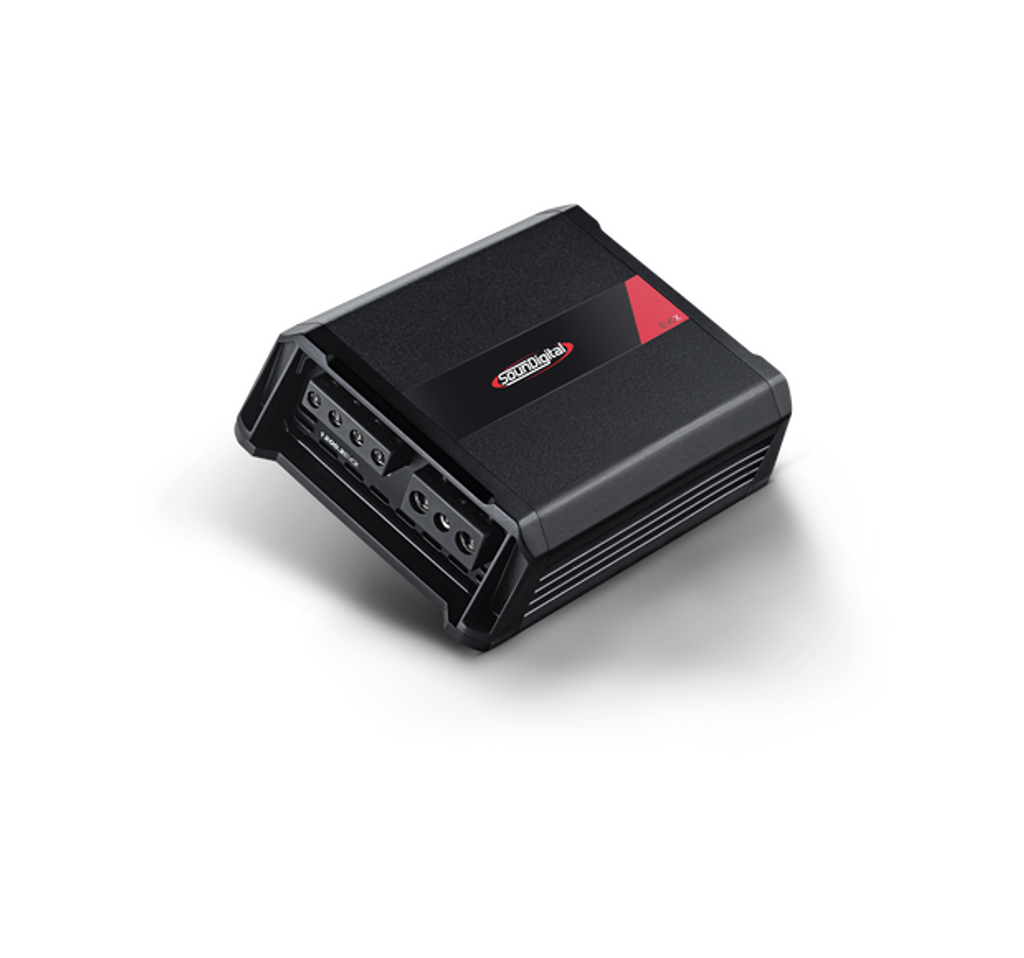

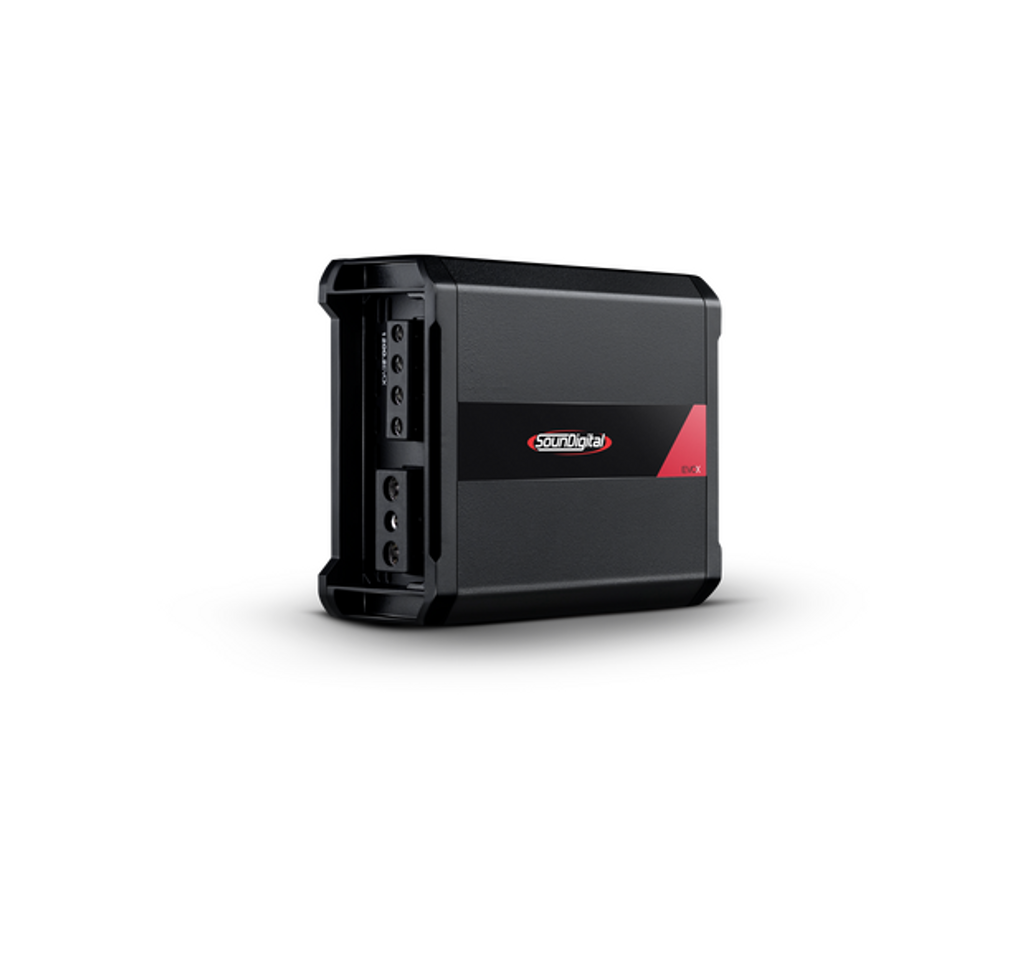

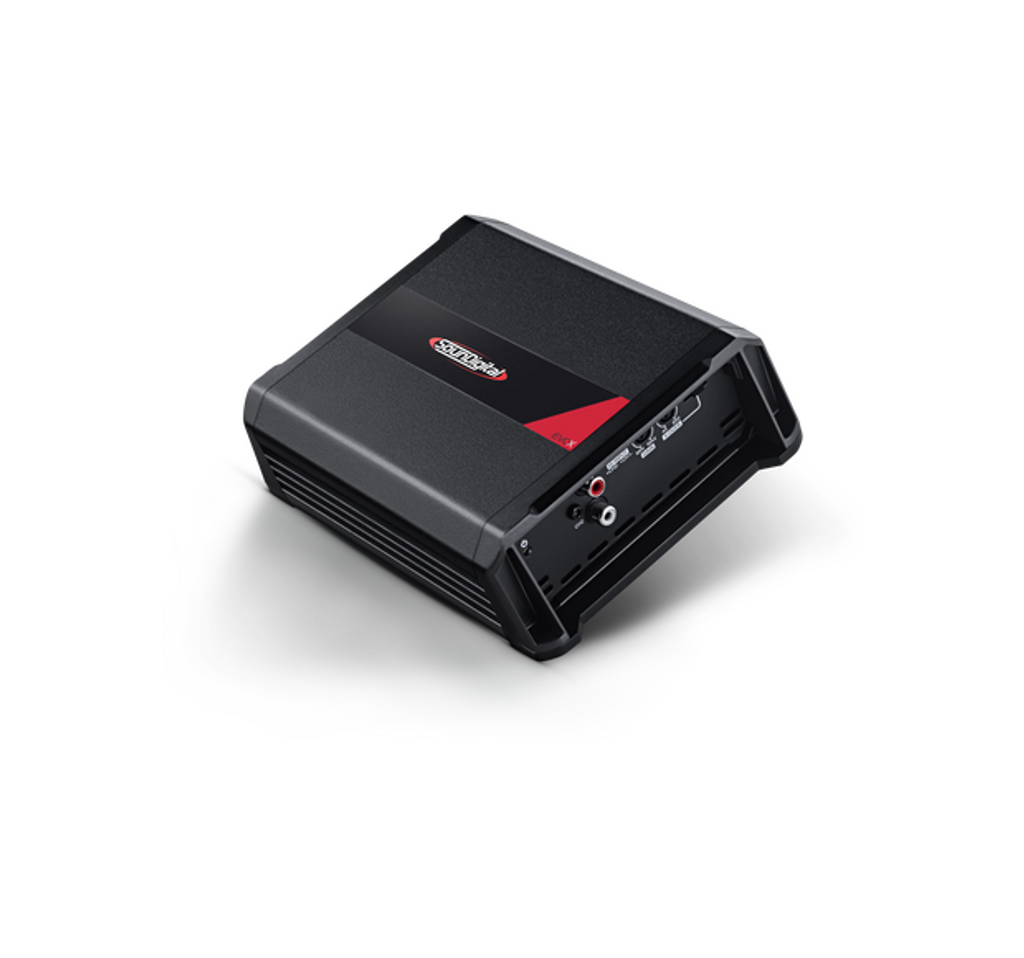

EVO X Line ger den senaste tekniken i en kompakt design med komponenter av högsta kvalitet. Från en banbrytande teknik tog SounDigital till billjudförstärkare något som inte hade utforskats ännu. Den termiska kopplingen genom RTGP-system. Det exklusiva RTGP-systemet (Thermal Recovery for power generation) garanterar SoundDigital-produkter både högre termisk effektivitet och robusthet med högre stabilitet
Power @ 12.6V @ 4Ω: 2 X 396 WRMS
Power @ 12.6V @ 2Ω: 2 X 600 WRMS
Power @ 12.6V @ 1Ω: N/A
Bridge Power @ 12.6V @ 4Ω: 1 X 1200 WRMS
Bridge Power @ 12.6V @ 2Ω: N/A
Power @ 14.4V @ 4Ω: 2 X 442 WRMS
Power @ 14.4V @ 2Ω: 2 X 669 WRMS
Power @ 14.4V @ 1Ω: N/A
Bridge Power @ 14.4V @ 4Ω: 1 X 1338 WRMS
Bridge Power @ 14.4V @ 2Ω: N/A
Operating Voltage: 8V – 16V
Current Draw (Music): 58 A
Current Draw (Max): 116 A
Recommended Fuse (Music): 60 A
Total Efficiency: 82%
Damping Factor: 200
Frequency Response (-3dB): 5Hz – 22kHz
SNR: 91dB
Crossover HPF: 45Hz – 850Hz
Crossover LPF: 45Hz – 850Hz
THD + N (10% Rated Power): 0.1%
Product Dimensions: 7.1 x 5.4 x 2.2 in
Product Dimensions: 18.1 x 13.6 x 5.5 cm
Do not run your amp under rated impedance!
