JBL STAGE GT 80021

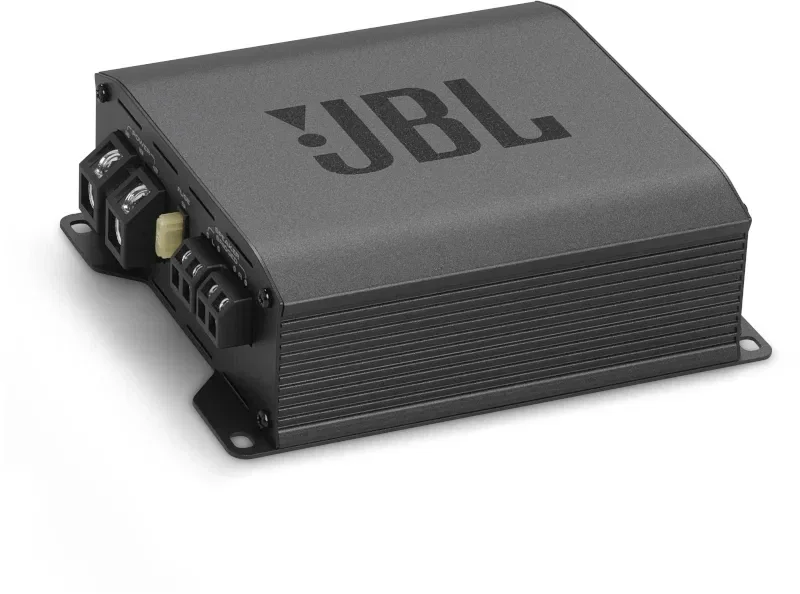

JBL Stage GT 80021

Compact 2-Channel Amplifier with JBL Power

The JBL Stage GT 80021 is a powerful Class-D amplifier with two channels. Its compact size allows it to fit easily in any vehicle while still delivering impressive performance. Choose for a stereo setup or bridge the channels for subwoofer use. With the adjustable filters and bass EQ you can perfectly tailor the sound to your configuration.

Key specifications

• Maximum power: 800W peak
• RMS power: 130W x 2 @ 2 ohms / 80W x 2 @ 4 ohms / 260W x 1 @ 4 ohms (bridged)
• Frequency response: 20Hz – 20kHz ±1dB
• Total harmonic distortion (THD+N): 1%
• Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
• Adjustable bass EQ: 0–12dB at 45Hz
• High-/Low-pass filters: 32Hz – 320Hz (adjustable)
• Protection: against short circuit, over-/undervoltage and overheating
• Supply voltage: 9V – 16V
• Fuse: 1x 25A

What's in the box?

• 1x JBL Stage GT 80021 amplifier
• 2x Spare fuse
• 1x High-level input cable
• 4x Mounting screw with ring
• 2x Allen key
• 2x JBL sticker
• 1x QR code for manual
• 1x Safety instruction
