JBL STAGE GT 60041

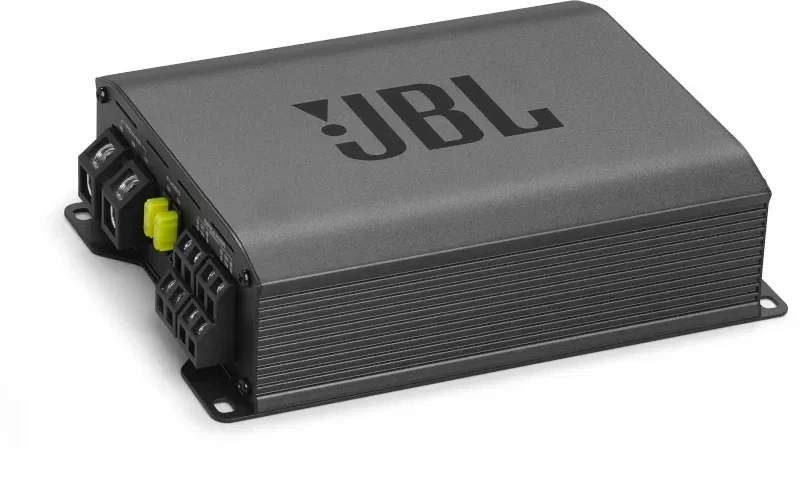

JBL Stage GT 60041

Compact 4-channel amplifier with powerful performance

The JBL Stage GT 60041 is a Class-D amplifier suitable for versatile configurations in your vehicle. Whether it concerns four speakers or a combination with a subwoofer: this amplifier delivers reliable power, adjustable filters and a compact installation.

Key specifications

• Maximum power: 1240W peak
• RMS power: 90W x 4 @ 2 ohms / 65W x 4 @ 4 ohms / 180W x 2 @ 4 ohms (bridged)
• Frequency response: 20Hz – 20kHz ±1dB
• Total harmonic distortion (THD+N): 1%
• Input sensitivity: 0.2V – 5V (low); 1V – 25V (high)
• Adjustable bass EQ: 0–12dB at 45Hz
• High-/Low-pass filters: 32Hz – 320Hz (adjustable)
• Protection: against short circuit, over-/undervoltage and overheating
• Supply voltage: 9V – 16V
• Fuses: 2x 20A

What's in the box?

• 1x JBL Stage GT 60041 amplifier
• 2x Spare fuse
• 2x High-level input cable
• 4x Mounting screw with ring
• 2x Allen key
• 2x JBL sticker
• 1x QR code for manual
• 1x Safety instruction
