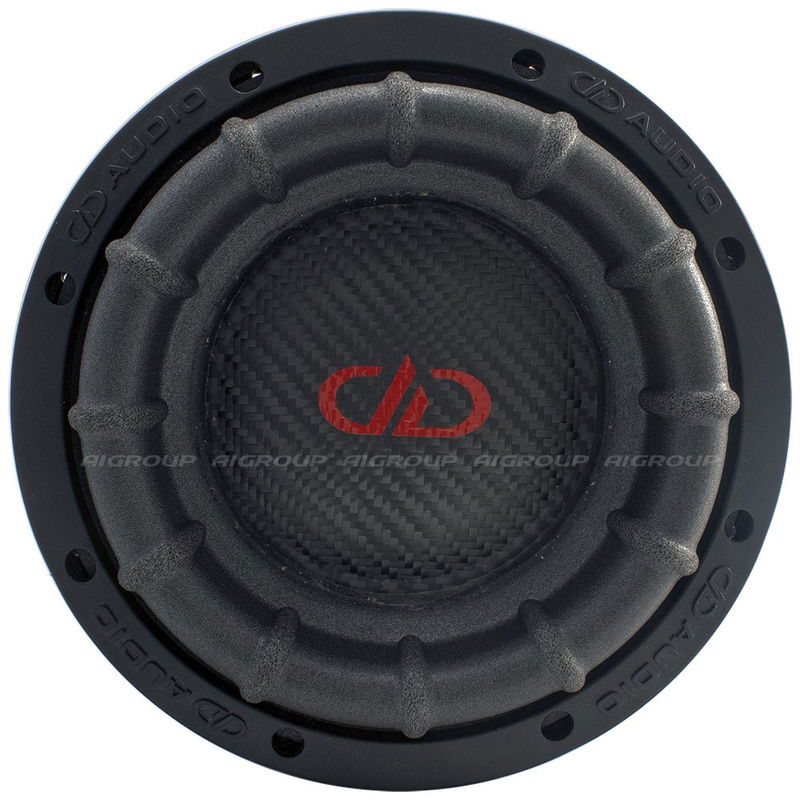

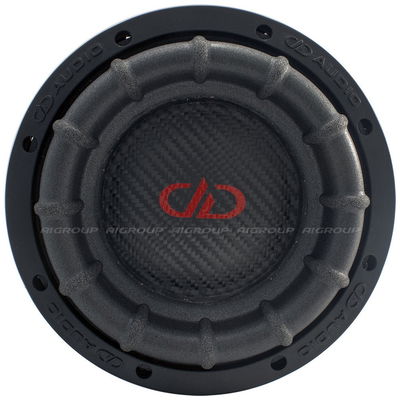

DD Audio 1506 D2 ESP

The 1500 Series are entry-level priced USA made subwoofers that will outperform most other brands flagship models. This level of performance is accomplished by utilizing the same design elements, like long gap/long coil topology, that you’ll find in our legendary 9500 and 9900 subwoofers. Like its big brothers, the 1500 Series is also equipped with EROM surrounds, multi-layer suspensions, lightweight cones, and 800 degree thermoset voice coils. The soft parts are driven via high energy motors that feature our Free Flow cooling system and Faraday shorting rings. This sub is a perfect solution for medium power applications where supreme quality is a necessity.

Speaker Size (In): 6.5
Watts RMS: 600
Watts Peak: 2400
Impedance: D2
VCD (In): 2
Piston Diameter (In): 5.5
Fs (Hz): 47.78
Qms: 5.152
Qes: 0.864
Qts: 0.740
Vas (Liters): 2.398
Xmech (MM): 48
Xmax (MM): 10
Frame OD (In): 7 7/16
Frame OD w/Gasket (In): 7 9/16
Mounting Diameter (In): 6 5/16
Mounting Depth (In): 6
Motor Diameter (In): 6
Motor Depth (In): 2 13/16
Woofer Displacement (CuFt): 0.05
Ported Enclosure (CuFt): 0.25 - 0.75
