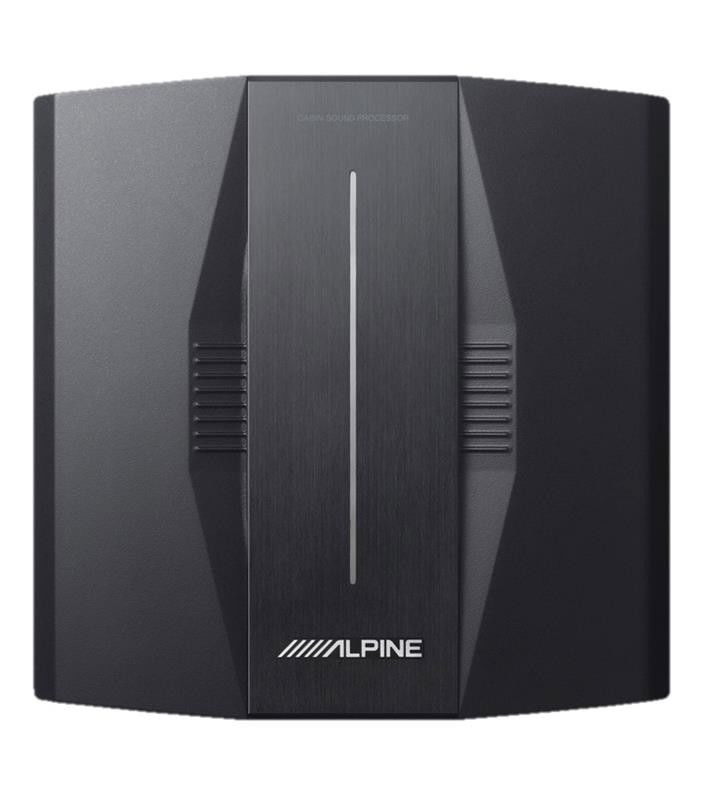

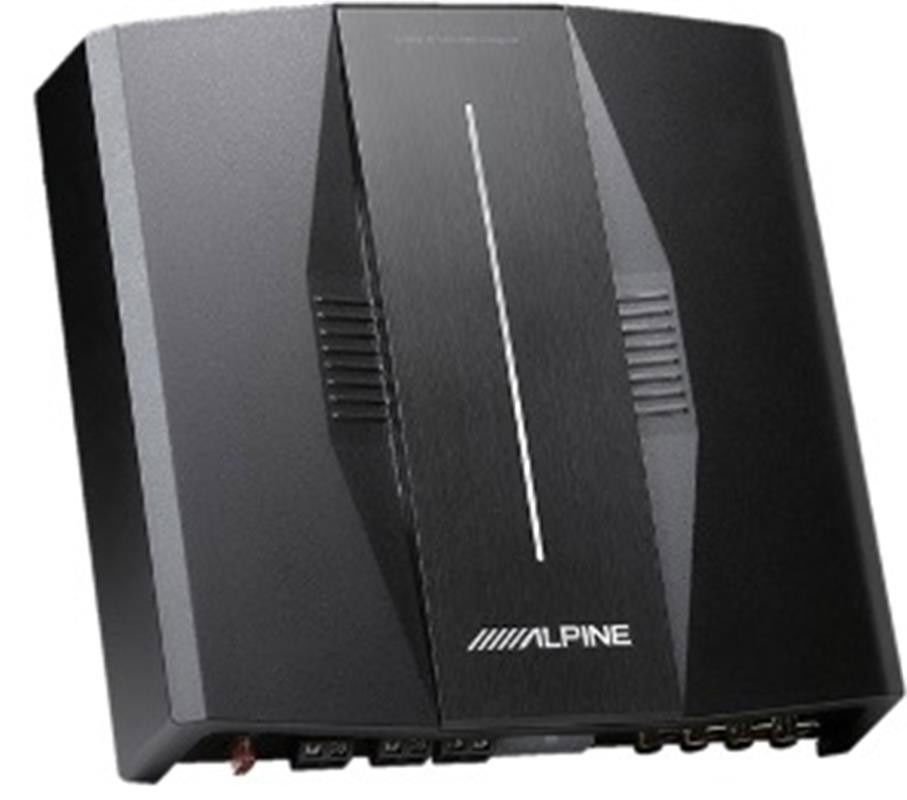

Alpine Optim8 Multichannel DSP amplifier
OPTIM8 8-Channel DSP Amplifier with Automatic Sound Tuning
Läs mer
Varför handla hos oss?
- Snabba leveranser
- Fraktfria alternativ från 1000kr*
- Säker betalning
Några frågetecken?
Beskrivning
FEATURES
General
- 8 Channel DSP Amplifier
- Hi-Res Audio Playback (96kHz/24Bit)
- Intuitive Real-time Sound Set-Up with 5 Minute Vehicle Self-Tuning

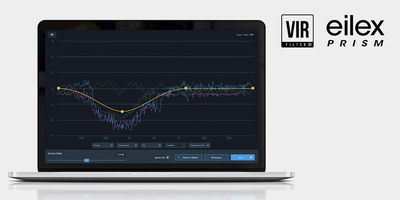

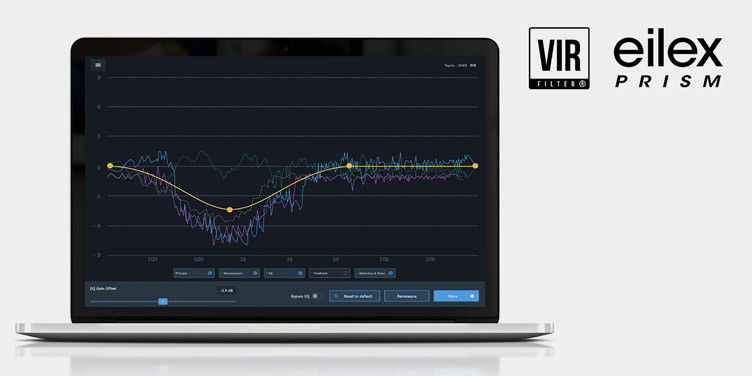

- Manual & Automatic Sound Tuning with PC App Control

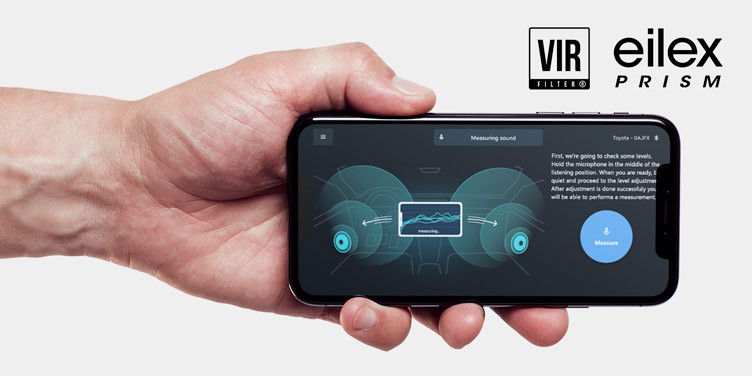

- Automatic Sound Tuning with iPhone App (must be iPhone 10 or newer)
- Anti-EQ for OEM System (Eliminates Factory EQ Curve)
- Auto-EQ with APVD Collection which Quickly Creates a Flat Vehicle Response
SPECIFICATIONS
Power Ratings
- Power Output (@4Ω 14.4V 1% THD): CH1-6: 35W, CH7-8: 130W
- Power Output (@2Ω 14.4V 1% THD): CH1-6: 70W, CH7-8: 260W
- RCA Output (@10kΩ 14.4V 0.1% THD): CH1-8: 4Vpp
General

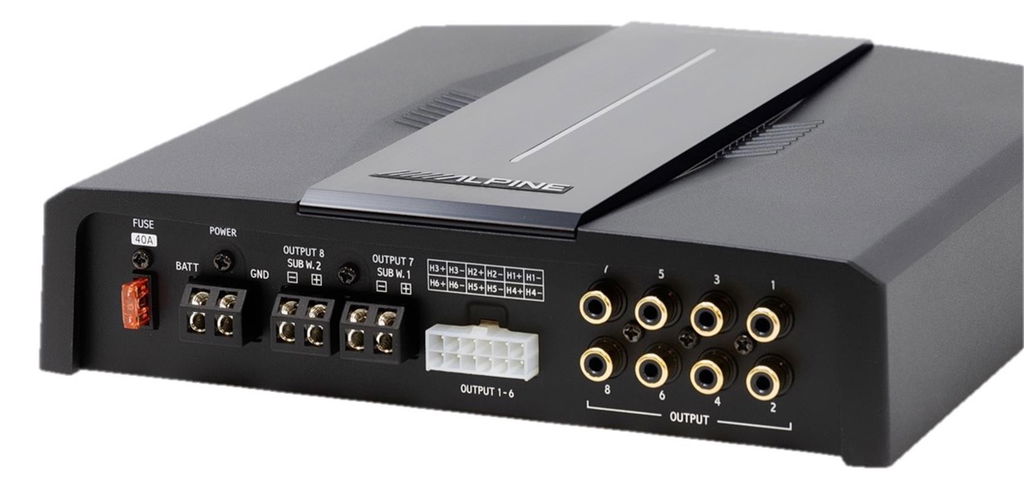

- Up to 8 speaker outputs with independent adjustable output level
- THD+N (High level: 2Vrms into 4Ω): ≤0.1%
- THD+N (RCA: 2Vrms into 10kΩ): ≤0.06%
- S/N Ratio (High level: 40k-AES17+A-weighted): ≥80dB
- S/N Ratio (RCA: 40k-AES17+A-weighted): ≥95dB
- Frequency Response: 20Hz-40kHz
- Input Voltage (High level): 26Vpp
- Input Voltage (RCA): 11Vpp
- Output Voltage (High level): CH1-6: 40Vpp, CH7-8: 70Vpp
- Output Voltage (RCA): 4Vpp
- Input Impedance (High level/RCA): >50kΩ
- System Sampling Rate: 192kHz/32bit
- Operating Voltage: 9~16V
- Operating Temperature: -20°C~+60°C
- Back Up Current (12.6V): ≤3mA
- REM Start Input: High level (H1-/H1+), ACC optional
- REM Start Output: 12V (0.2A)
