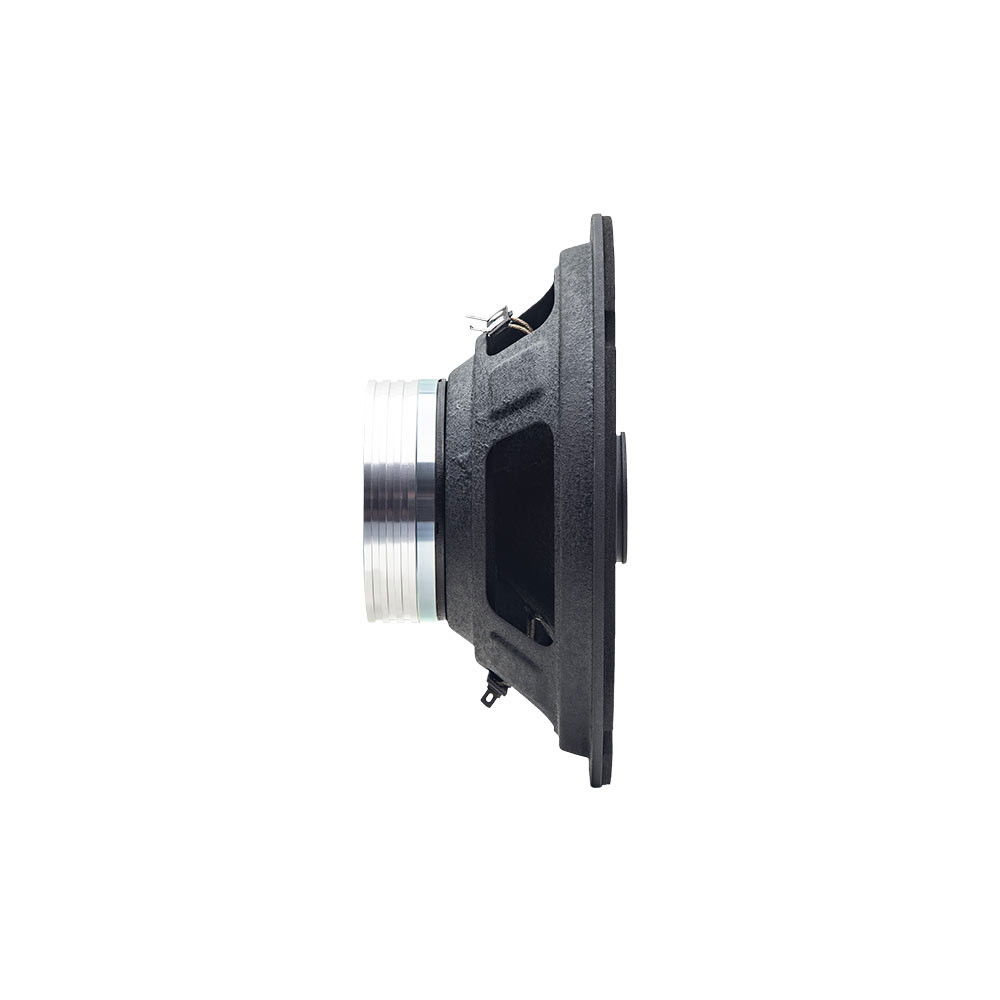

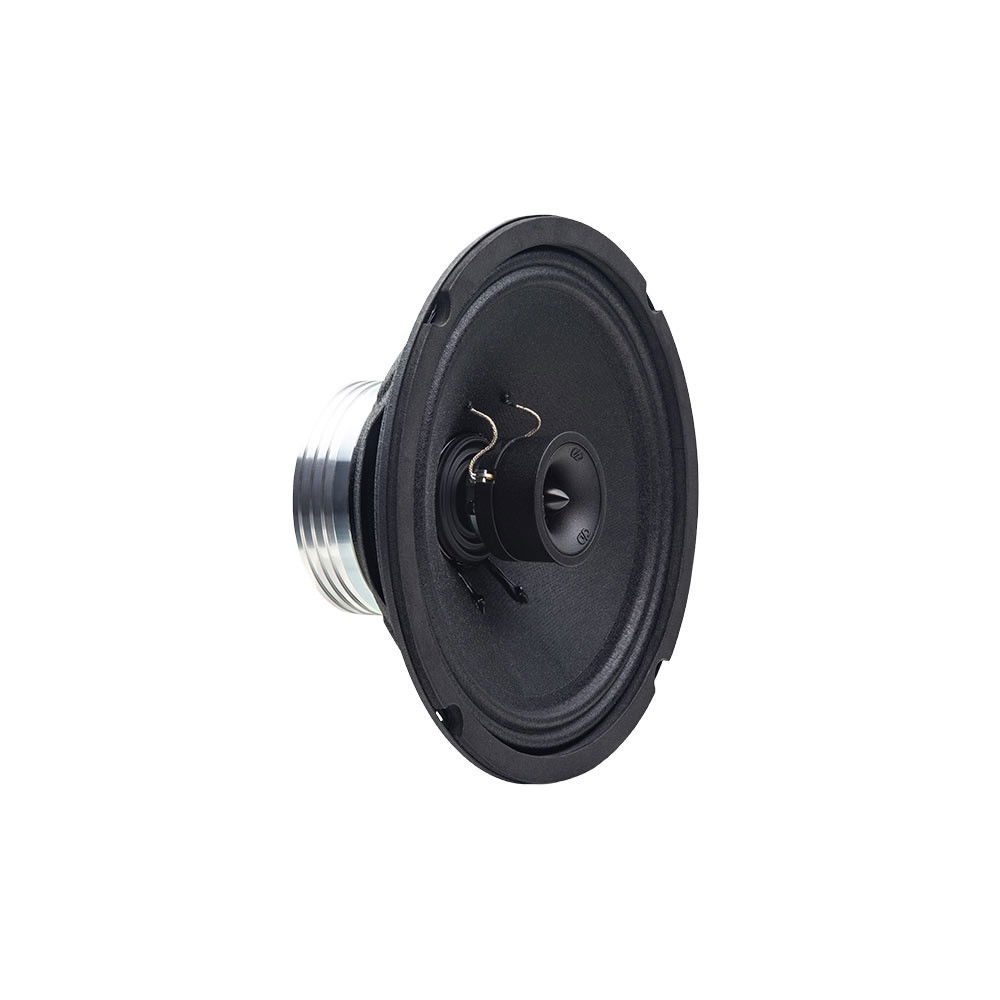

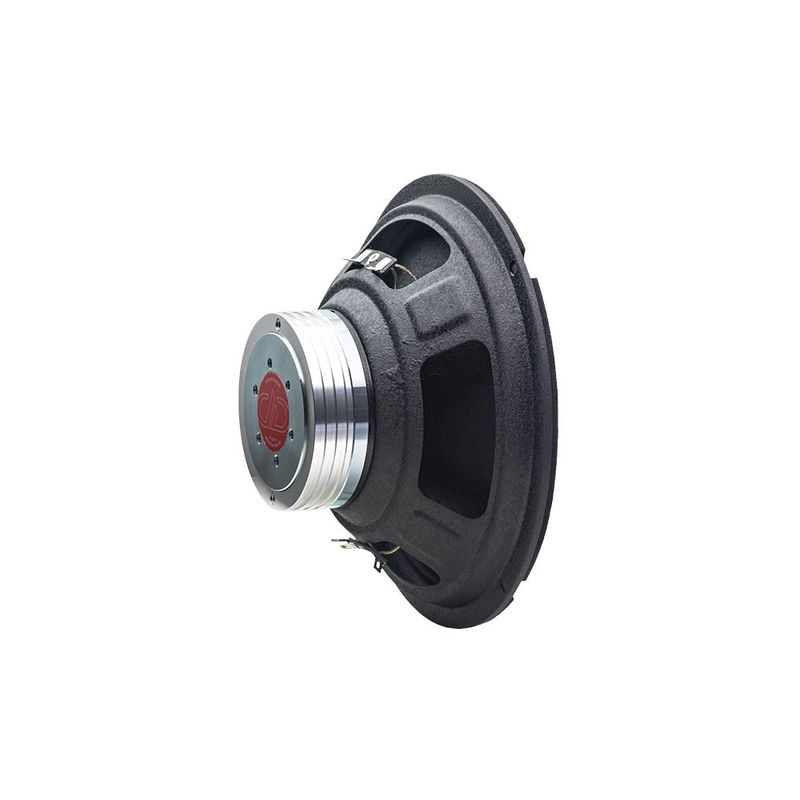

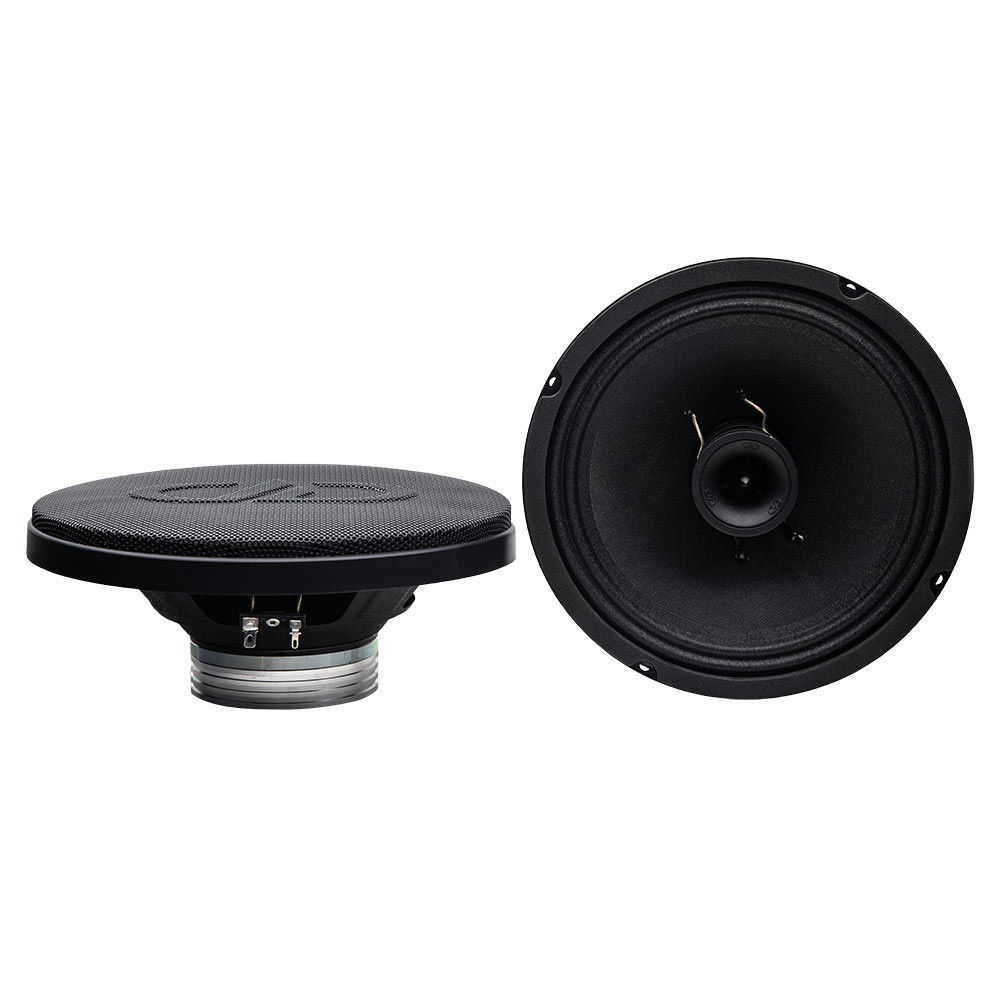

DD Audio VO-XN308-S4

The new Voice Optimized XN300 coaxial speakers feature an upgraded motor design and larger voice coil over the VO-XNa drivers, increasing both the power handling and output capability. The stronger motor of the speaker is complemented by the introduction of the 4th Gen B1 compression driver, made with a smaller all aluminum body while the voice coil was increased to 1.8”, for 25% greater total area. The VO-XN300s continue the tradition of blending the latest in Hi-Fidelity technology with the qualities of high-end Pro Audio to produce a tonally smooth, low distortion frequency response over a wide bandwidth through an undeniably powerful broadcast to give listeners near and far a gratifying interaction with loud and clear audio. These combination drivers can cover frequencies as low as 85Hz all the way up to 20kHz, making system designs easy.

They also include exclusive adventure ready design features, like sealed voice coil gaps and water resistant, synthetic resin cones made for unyielding rigidity and ultra-light moving mass, all to overcome the harsh conditions and environmental noise you’ll encounter on road and off.

Features
Dual Magnet Neo Motor Design w/ Dual Shorting Rings
Machined Aluminum Front and Rear Motor Removable Heatsinks
Kapton Voice Coil Former for Decreased Inductance
DD Tooled 4th Gen Neo Magnet Compression Tweeter
Moisture Resistant Polymer Infused Curvilinear Cone
Rubber Voice Coil Gap Cover
CCA Voice Coil Wire for Increased Efficiency
Removable Rear Heatsink for Increased Mountability
Bi-Ampable

Speaker Size (In): 8
Tweeter Size (In): 1
Watts RMS: 250
Watts Peak: 500
Impedance: S4
VCD (In): 1.8
Frequency Response (Hz): 65 - 20k
Fs (Hz): 65
Qms: 2.115
Qes: 0.45
Qts: 0.371
Vas (Liters): 27.21
dBSPL: 96
Tweeter dBSPL: 104
Mounting Diameter (In): 7.25
Mounting Diameter (MM): 185
Mounting Depth (In): 3.25
Mounting Depth (MM): 83
