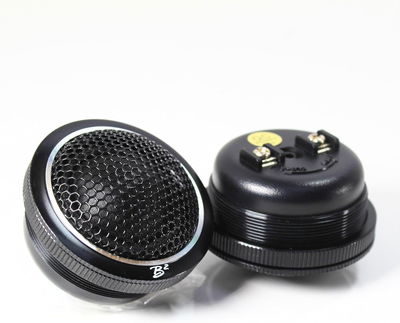

Tweeter Specifications:
- RMS Power Handling: 30W
- Nominal Impedance: 4 Ohm
- Voice Coil Diameter: 1"
- Frequency Response: 1250 Hz ~ 25 KHz
Thiele & Small Parameters
- Free Air Resonance (Fs): 1250 Hz
- Resistance (Re): 3.9 ohm
- Mechanical Factor (Qms): 0.76
- Electrical Factor (Qes): 2.43
- Total Factor (Qts): 0.58
- Equivalent Volume (Vas): 0.001 L
- Compliance (Cms): 5.7 um/N
- BL Factor (BL): 6 TM
- Moving Mass (Mms): 2.8 g
- Sound Pressure Level (SPL): 84 dB
Measurements:
- Overall Diameter: 2.19" / 55.8mm
- Mounting Diameter: 1.90" / 48.4mm
- Front Mount Baffle Cutout: 1.6" / 40.6mm
- Overall Depth: 1.03" / 26.3mm
- Mounting Depth: 0.61 / 15.6mm
- Sold as: (Pair)
